Typical structure for elevator rope

Tianlun 8 Strands Elevator Rope

  • Characteristic: preformed, prestretching(medium), net, right spinning, ordinary lay, and lang lay
  • Tensile strength grade: 1370MPA 1570MPA 1770 MPA

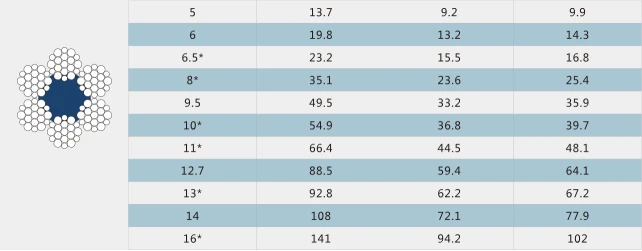

8x19W+FC ( The diameter ≥ 8.0mm)

8x19W+FC

8x19S+FC ( The diameter ≤6.5mm)

8x25Fi+FC

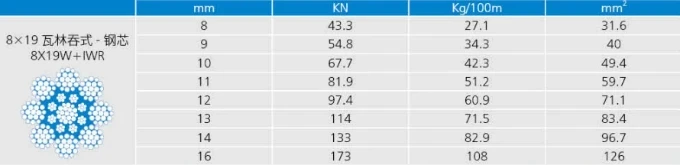

8x19W +IWRC

Tianlun S9 Strands IWRC Elevator Rope

  • The construction is changed with the diameter, in order to optimize the ability of bend fatigue and anti-resistance to wear
  • Characteristic: preformed, prestretching(medium), net or galvanized, right/left spinning, ordinary lay and lang lay

9x19S+IWRC

9x21Fi+IWRC

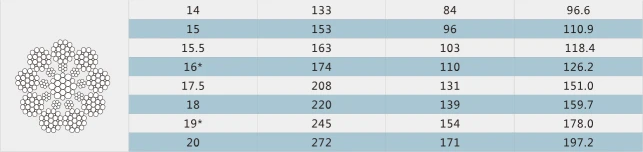

9x25Fi+IWRC

Tianlun G9 Strands IWRC Elevator Rope

  • G9 Strands is designed for the Ultra High Elevator
  • Characteristic: preformed, prestretching(medium), net, right spinning, ordinary lay.
  • Tensile strength grade: 1960 Mpa
  • Tolerance of the dimater:Max +/-3% @unloading, Min -1% @ the loading is 10

9x17S+IWRC

9x25Fi+IWRC
